How To Measure A Mining Hose Flange

An incorrectly measured flange on a high-pressure slurry or dewatering line guarantees catastrophic failure. It creates severe safety hazards. It also causes costly unplanned downtime. In the brutal environment of mineral extraction, relying on guesswork leads to rapid equipment degradation. Securing an exact fit requires moving beyond nominal sizes. You must physically verify dimensions, face types, and system standards before procurement. Minor discrepancies in bolt hole alignment cause uneven stress distribution. Eventually, they lead to fatal pipeline blowouts.

We emphasize precision. We prioritize strict standard compliance. We focus on mitigating operational risk during the specification stage. This comprehensive guide walks you through essential preparation and tooling. You will learn core measurement steps to capture critical data accurately. Furthermore, we explore the mining-specific variables you must evaluate. Physical verification is the only way to ensure safe, continuous operations.

Key Takeaways

• Pitch Circle Diameter (PCD) is the most critical metric for ensuring bolt alignment; calculating it correctly prevents installation bottlenecks.

• Never assume pressure ratings based solely on standard classifications (e.g., ANSI 150# does not equal 150 PSI working pressure).

• Mining applications often utilize specific adaptations, such as plate cut flanges and built-in nipples, requiring specialized measurement and evaluation.

• Verifying standards (ASME vs. EN/JIS) prevents dangerous mismatches when integrating replacement mining hose assemblies with legacy pump infrastructure.

Evaluating the Risks of Flange Mismatches in Mining Operations

Precision is not optional in heavy industry. Millimeter discrepancies in flange specifications lead to severe point-loading on bolts. When bolts endure uneven tension, the weaker connection points fail first. Mismatched materials or poorly seated flanges also invite galvanic corrosion. This accelerates metal degradation. In abrasive slurry transfers, these minor gaps quickly become major blowouts. You cannot afford to guess when replacing a mining hose.

We approach flange measurement through the S.T.A.M.P.E.D. framework. This stands for Size, Temperature, Application, Material, Pressure, Ends, and Delivery. Flange measurement falls squarely under the "Ends" (E) category. You must lock down this variable to ensure the entire assembly performs under load. A perfect hose fails instantly if its ends do not mate seamlessly with your existing infrastructure.

You must evaluate your existing infrastructure before specifying a replacement assembly. Check the mating flanges for physical wear. Look for ovality. Older pipes often develop eccentricity after years of settling and stress. Inspect the flange face for gouges or surface damage. If the existing pump flange is compromised, even a perfectly measured replacement hose will leak.

Essential Preparation and Measurement Tooling

Always search for manufacturer stamps before you measure manually. Clean off any hardened mud or slurry. Inspect the outside edge of the existing flange. You will often find stamped standard identifiers. These stamps reveal the nominal size and pressure class. They give you a baseline. However, you must still measure manually to confirm these nominal figures match the physical reality of worn equipment.

You need the right tools to capture accurate data. Do not rely on standard wooden rulers. We recommend using calibrated digital calipers. They provide exact readings for bolt hole diameters and flange thickness. For outer dimensions, use heavy-duty diameter tapes. Industry professionals often call these pi tapes. They account for large-diameter variables and eliminate the guesswork of finding the exact center across a massive pipe.

Field conditions introduce errors. Tape measures often suffer from zero-hook inaccuracies. The metal hook at the end bends over time. To prevent this, start your tape measurements at the 100mm mark. Align the 100mm line exactly with the starting edge. Read the final number and subtract 100mm. This simple practice ensures laboratory-grade precision in heavy-duty environments.

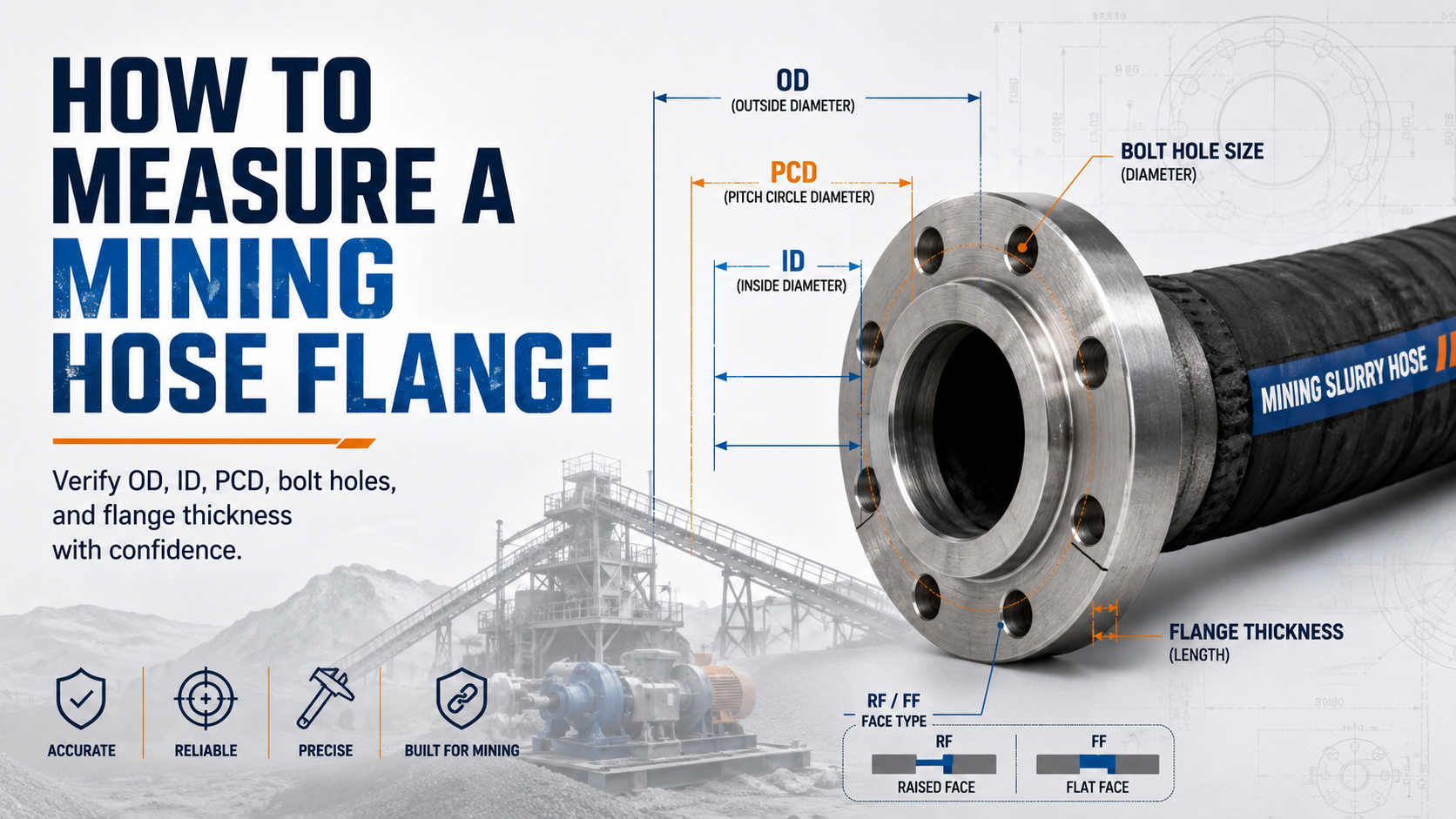

Step-by-Step Execution: Capturing the Core Dimensions

Capturing core dimensions follows a strict sequence. You must define the measurement axis clearly. Always measure from edge to edge across the exact center of the pipe.

1. Outer Diameter (OD): Measure across the full width of the flange face. Ensure the tape crosses the absolute center point.

2. Inner Diameter (ID): Measure the inside bore. For lined pipelines, you must deduct the thickness of the internal rubber lining. Failing to account for the lining restricts flow and increases internal velocity.

3. Pitch Circle Diameter (PCD): This is your definitive alignment variable. It dictates whether the bolts will pass through both flanges.

4. Bolt Hole Size: Measure the inner width of the hole.

5. Flange Thickness: Measure the side profile of the flange plate.

Let us look closer at PCD. Calculating PCD correctly prevents installation bottlenecks. For flanges with an even number of holes, use a proven field technique. Measure from the inside edge of one hole to the outside edge of the directly opposite hole. This yields the precise center-to-center distance without requiring complex geometry.

When measuring bolt hole size and count, be meticulous. Use your calipers to measure the inner width of the hole. Note that this hole will be marginally larger than the required metric or imperial bolt size. This clearance allows for minor alignment adjustments.

Flange thickness represents Dimension C. Thickness acts as a primary identifier for pressure classes. It distinguishes a standard SAE configuration from a high-pressure setup. Below is a summary table of these critical dimensions.

Accounting for Mining-Specific Hose Assembly Variables

Mining operations rarely rely on standard commercial plumbing setups. Specialized adaptations exist to handle extreme abrasion and movement. You must recognize these variations during your measurement phase.

• Plate Cut Flanges vs. Standard Flanges: Many mining setups use plate cut flanges. These are thinner than standard forged flanges. They save weight on long, suspended slurry lines. You must note this thickness discrepancy. It directly affects the bolt length you need for procurement.

• Built-In Nipple Designs: Heavy-duty applications often feature built-in steel nipples. In this design, the rubber hose cover extends over the flange face. This protects the steel from abrasive slurry. It changes how you calculate the overall assembly length.

• Face Type Identification: You must identify the face type. Differentiate between a Raised Face (RF) and a Flat Face (FF). RF flanges have a small raised ring around the bore. FF flanges sit completely flat.

Mating an RF flange to an FF flange is dangerous. This is especially true on brittle equipment like cast iron pumps. When you apply torque, the raised face acts as a pivot point. The outer edges bow inward. This easily cracks the cast iron housing. Always verify face compatibility.

Validating Measurements Against Global Pressure Standards

Global standards differ wildly. Warn your team against mixing ANSI/ASME B16.5 standards with EN or JIS standards. ANSI relies on imperial measurements. EN and JIS use metric systems. Even when nominal sizes appear identical, they are not. Bolt hole spacing will vary. Flange thickness will differ. Mixing them guarantees a catastrophic leak.

You must dispel the "150#" misconception. A Class 150 flange rating dictates physical dimensions and geometry. It does not mean a strict 150 PSI working limit. Actual working pressure relies on material density. It also depends on the operating temperature. A carbon steel Class 150 flange might handle 285 PSI at room temperature. Do not assume nominal classes equal working pressures.

Temperature degradation plays a major role in pressure validation. The maximum allowable working pressure (MAWP) decays as temperatures rise. This applies to both internal fluid temperature and external ambient temperature. You must factor this thermal decay into your final specification.

Translating Measurements into Procurement Action

You have captured the data. Now, translate it into standard measurement protocols for procurement. Understand the difference between Overall Length (OAL) and Live Length. OAL measures the entire assembly from end-of-fitting to end-of-fitting. Live length only measures the flexible portion of the hose. You need accurate live length to accommodate offset movements and vibration.

Remind your specifiers to factor in bend radius allowances. We use the 10x ID bend radius rule. The bend radius should be at least ten times the inner diameter of the hose. Ensuring proper hose length prevents severe bending immediately after the rigid flange connection. Sharp bends behind the fitting cause rapid premature failure.

Sometimes, standard charts fail. You will encounter custom pump flanges on legacy mining equipment. Outline the specific data needed when this happens. Record the pump make. Note the exact model. Capture all nameplate data. Physically measure the pump casing mating face. Send this complete data package to the manufacturer. This ensures they engineer a custom mating flange correctly.

Conclusion

Accurate flange measurement bridges the gap between field infrastructure and safe procurement. It eliminates the guesswork that causes abrasive blowouts and hazardous leaks. Assuming standard classifications without physical verification introduces severe liability to your operation. Millimeter discrepancies matter.

Take action by implementing a strict physical measurement policy. Use digital calipers. Apply the 100mm tape rule. Calculate your PCD correctly. Differentiate your face types to protect brittle pump housings. Always account for temperature degradation and mining-specific built-in nipples.

We encourage technical consultation before you finalize your order. Provide exact A-to-E physical measurements alongside pump nameplate data. This guarantees the right assembly is delivered the first time. If you need expert guidance on specifying your next heavy-duty pipeline, please contact us today.

FAQ

Q: How do I measure Pitch Circle Diameter (PCD) on a flange with an odd number of bolt holes?

A: You cannot measure directly across the center. Instead, measure the distance between two adjacent holes. Use a geometric calculation chart based on the hole count to find the PCD. Alternatively, measure from the center of one hole to the absolute center of the central hub. Multiply this number by two.

Q: Can I measure a flange while the mining hose is still connected to the system?

A: Yes, you can measure the OD, thickness, and bolt hole diameter in situ. However, verifying the exact ID and inspecting the flange face type is impossible while connected. You require isolating the line and unbolting the connection to check for internal wear and face styles.

Q: What is the correct way to tighten the bolts once the new flanged hose is installed?

A: Use the industry-standard three-step criss-cross pattern. We also call this a star pattern. Apply torque in stages. Tighten all bolts to 30% of target torque. Then tighten them to 60%. Finally, tighten them to 100%. This ensures even compression and prevents gasket blowout.

Q: Why is my new flange slightly thicker than the old one?

A: Legacy flanges suffer from surface corrosion and abrasive wear. Older equipment loses thickness over time. Your new flange reflects the original manufactured thickness. Always reference original standard charts to verify pressure classes rather than relying solely on the worn dimensions of degraded components.
