Unplanned downtime in mining operations often traces back to premature equipment failure. For fluid and materials transfer, the integrity of a mining hose dictates operational continuity. Pumping heavy slurries or high-pressure air places immense stress on every component. Purchasing decisions based solely on spec sheets often overlook critical manufacturing variations. These hidden differences ultimately determine the real-world lifespan of the equipment. Understanding exactly how a hose is constructed becomes critical for operators. It helps buyers evaluate vendor reliability effectively. You can more accurately match the product to abrasive or high-pressure applications.
This guide deconstructs the complex manufacturing process of industrial hoses. We translate advanced engineering methods into actionable procurement criteria. You will discover what happens inside the factory and why it matters in the field. By learning these steps, you can avoid catastrophic field failures. You will confidently specify the exact mining hose your operation demands. If you need specialized guidance on selecting the correct specifications, you can always contact us for support.

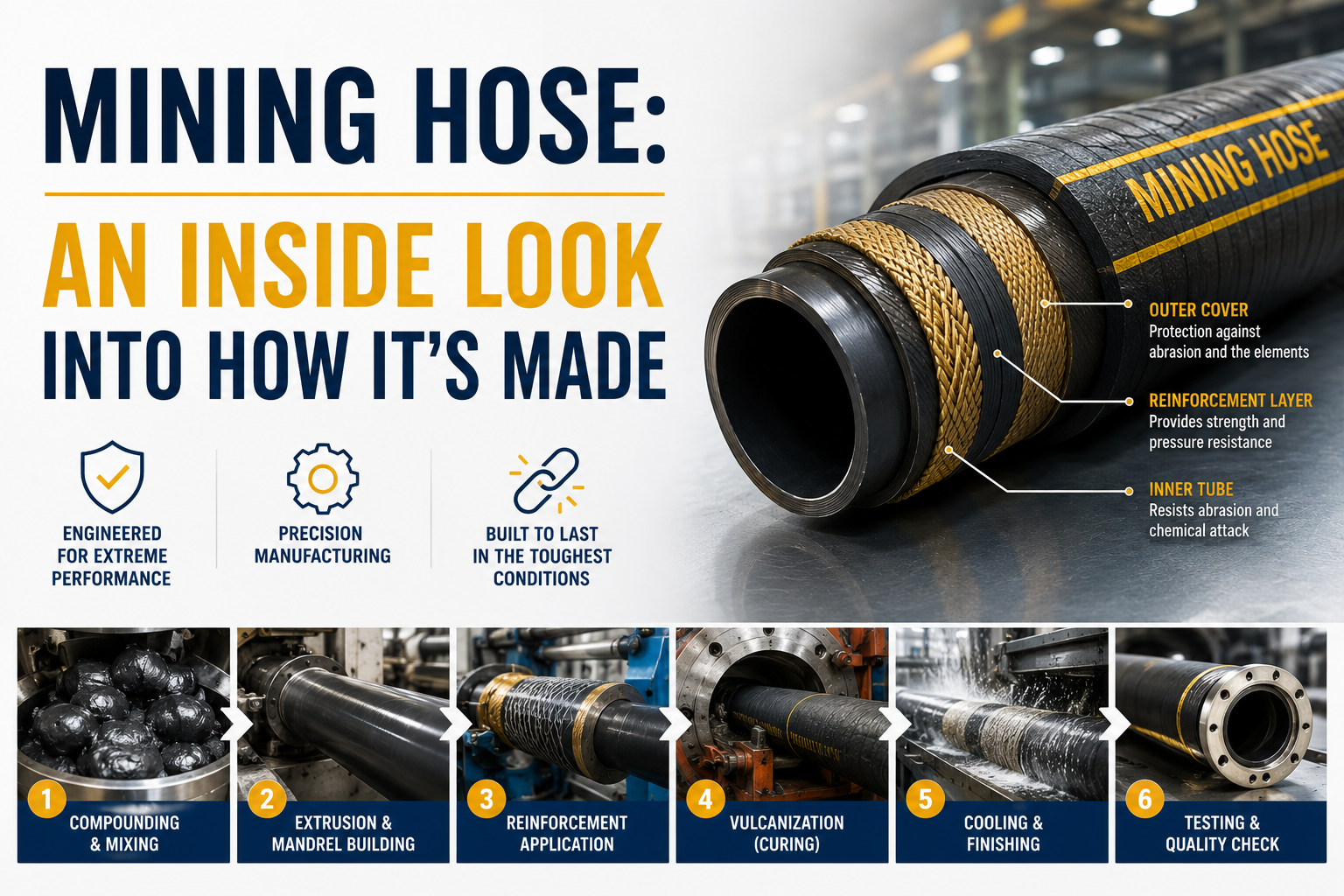

A mining hose’s durability relies on a three-tier architecture: the inner tube, reinforcement layer, and outer cover.
The vulcanization process is the most critical manufacturing step for preventing catastrophic delamination under high pressure.
Procurement evaluation must align specific manufacturing materials (e.g., natural rubber vs. synthetic blends) with the target application (slurry, air, or chemical transfer).
Proper specification requires evaluating the safety factor (ratio of burst pressure to working pressure) alongside minimum bend radius limits.
Industrial hoses are highly engineered composite structures. They rely on multiple distinct layers working together under extreme stress. A typical heavy-duty hose features a specialized three-tier architecture. Each layer serves a specific, uncompromising operational purpose. Understanding this anatomy helps you identify weak points before deployment.
The inner tube acts as the primary defense mechanism for the entire structure. It directly contacts the transferred materials. This layer must resist severe abrasion and aggressive chemical corrosion continuously. Manufacturers carefully select materials based on the intended payload. High-tensile natural rubber excels at handling aggressive, sharp slurries. It physically absorbs the impacts of rocks and minerals. Conversely, manufacturers use synthetic rubbers like EPDM or Nitrile for different challenges. These synthetic blends provide exceptional resistance when pumping harsh chemicals or petroleum-based oils. You must match this core layer exactly to your specific operational hazards.
This middle layer gives the hose its mechanical strength. It directly dictates the maximum working pressure. It also provides essential resistance to vacuum collapse during suction operations. Manufacturers construct this layer using various heavy-duty materials. They frequently use high-tensile steel wire helixes for rigid suction applications. They also use tightly braided synthetic cords or heavy-duty textile fabrics. The specific arrangement of these materials manages internal hoop stress. Without a robust reinforcement layer, the inner tube would simply balloon and burst under pressure.
The outer cover acts as the external armor. It protects the internal structural layers from severe external site hazards. Mining environments expose equipment to intense UV radiation and ozone. They also involve heavy physical impact and constant dragging across jagged rocks. The cover absorbs these punishments so the internal reinforcement remains intact. Manufacturers offer different variations for specific site conditions. Corrugated covers provide enhanced flexibility for tight routing. Smooth covers offer superior durability for continuous ground contact and heavy dragging.
Anatomy of a Mining Hose | |||
Layer | Primary Function | Common Materials | Key Performance Metric |
|---|---|---|---|
Inner Tube | Abrasion and chemical resistance | Natural rubber, EPDM, Nitrile | Wear rate and chemical compatibility |
Reinforcement | Pressure containment and vacuum resistance | Steel wire helix, textile braids | Working pressure and burst pressure |
Outer Cover | Environmental and physical protection | Synthetic rubber blends | Ozone resistance and gouge resistance |
Creating a reliable hose requires strict adherence to complex manufacturing protocols. Skipping or rushing any phase compromises the final product. Understanding these steps empowers you to ask vendors the right questions.
The journey begins in the mixing facility. Raw elastomers are carefully blended with precise chemical agents. Manufacturers add carbon black, sulfur, and specific anti-degradation additives. This recipe determines the final physical properties of the rubber. Quality control during this stage is absolutely vital. Precise compounding prevents premature hardening or cracking in harsh mining environments. Poorly mixed rubber will degrade rapidly when exposed to field conditions.
Next, the compounded rubber moves to the extrusion line. The inner tube is extruded over a solid core known as a mandrel. This rigid pole guarantees a perfectly uniform internal diameter (ID). It also ensures consistent wall thickness across the entire length. Mandrel-built hoses offer superior ID consistency compared to free-extruded alternatives. This consistency drastically reduces internal turbulence. It prevents uneven wear spots during high-velocity slurry transfers. Buyers should actively prioritize mandrel-built construction for critical material handling lines.
Once the inner tube sits firmly on the mandrel, reinforcement begins. Specialized machinery intricately wraps or braids the steel wire and textile layers. These machines apply the materials directly over the inner tube at mathematically specific angles. The performance outcome relies heavily on this precision. The angle and tension of the wrap determine how the hose reacts to extreme pressure spikes. Proper tension minimizes unwanted elongation or twisting when the system pressurizes. Poorly applied reinforcement leads to structural fatigue and premature rupture.
Vulcanization transforms the assembled layers into a single, cohesive unit. The entire hose is subjected to high heat and pressure inside a massive curing oven. This extreme environment chemically cross-links the rubber molecules. The separate layers bond together permanently. This phase acts as the ultimate risk mitigation step in the factory. Incomplete vulcanization remains the leading cause of layer separation during site operation. When delamination occurs, pressure fluid penetrates the layers and destroys the hose. Proper curing times and temperatures are non-negotiable for site safety.
Factories do not build every hose the same way. They manipulate the manufacturing steps to favor specific performance traits. You must recognize these variations to ensure operational compatibility.
Slurry transfer represents one of the most destructive applications on earth. These hoses require ultra-thick, specialized abrasion-resistant inner tubes. Manufacturers formulate the rubber specifically to absorb the immense kinetic energy of heavy particulates. The soft, resilient inner layer allows rocks to bounce rather than cut. They also heavily reinforce the outer cover to survive constant dragging across jagged terrain. The entire design prioritizes impact resistance and wear longevity over extreme flexibility.
Pneumatic and hydraulic applications demand entirely different manufacturing priorities. These hoses focus heavily on tight, multi-layer textile or wire braiding. They must maintain perfect structural integrity under continuous pneumatic or hydraulic stress. The inner tube needs less abrasion resistance but flawless air or fluid retention. Factories utilize highly rigid steel braids to prevent expansion. Even minor elongation under pressure can cause severe safety hazards in tight underground tunnels.
Tailings management requires transporting materials over massive distances. These hoses often incorporate specialized built-in flanges during the manufacturing process. Workers vulcanize the heavy metal flanges directly into the rubber structure. This technique ensures completely leak-proof connections over long distances. It eliminates the need for external clamps that might slip under heavy tension. The reinforcement layers tie directly into the flange base, creating an unbreakable mechanical bond.
Selecting the proper equipment requires moving beyond basic dimensions. You must evaluate the engineering standards applied during manufacturing. Using a structured evaluation process prevents costly specification errors.
Pressure capacities define the absolute operational limits of your system. You must demand a transparent ratio between Working Pressure (WP) and Burst Pressure (BP). The industry standard typically requires a 1:3 or 1:4 safety factor for mining applications. If your system operates at 100 PSI, the burst pressure must exceed 300 or 400 PSI. This generous margin absorbs sudden pressure spikes caused by blockages or pump surges. Never operate a hose near its maximum burst limit.
Routing requirements dictate how a hose will perform physically. Always verify the documented Minimum Bend Radius (MBR). The MBR indicates how tightly you can bend the hose before the structural integrity fails. Forcing a hose beyond its MBR during installation guarantees severe structural fatigue. The inner wire helix will kink, and the outer cover will stretch and tear. This stress leads directly to premature rupture. Plan your site routing to accommodate these documented physical limits.
A hose is only as secure as its end connections. You must assess whether the manufacturer offers integrated (vulcanized) ends versus mechanically attached couplings. Integrated ends are built into the rubber during the curing phase. They eliminate the catastrophic risk of the hose blowing off the fitting under high tension. Mechanically attached external couplings work well for low-pressure utilities. However, critical slurry or high-pressure lines demand the security of vulcanized integration.
Safety regulations demand strict compliance documentation. Require verified documentation for relevant ISO, DIN, or MSHA (Mine Safety and Health Administration) standards. MSHA compliance is particularly vital for underground operations. It verifies specific flame resistance and anti-static properties. Without these properties, a simple static discharge could ignite ambient dust or gases. Reputable manufacturers gladly provide technical data sheets proving their compliance with global safety standards.
Verify the 1:4 safety factor for burst pressure.
Confirm the inner tube compound matches the pumped fluid.
Check the MBR against your planned installation route.
Ensure integrated end fittings for high-tension applications.
Request formal MSHA or ISO certification documents.
Even perfectly manufactured equipment will fail if handled incorrectly. Field execution heavily influences the final lifespan of the product. Understanding common failure points allows you to implement preventative site protocols.
Physical handling during connection drastically impacts structural strength. Twisting or torquing the hose during connection alters the internal braid angles. This simple installation error reduces pressure capacity by up to 30%. The misaligned reinforcement layers can no longer distribute stress evenly. Installers must use proper lifting equipment and avoid rotational force when bolting flanges together. Lay lines printed on the outer cover help visual confirm the hose remains straight.
Flow dynamics directly dictate internal wear rates. Sizing a hose incorrectly can cause slurry velocity to exceed engineering design limits. High-velocity transfer creates severe turbulent flow inside the tube. This turbulence rapidly accelerates internal tube wear, regardless of superior manufacturing quality. The abrasive particles act like sandpaper at high speeds. Engineers must calculate flow rates accurately to maintain a smooth, laminar flow that preserves the rubber.
Pre-deployment handling causes significant unseen damage. Exposure to direct sunlight degrades the outer cover rapidly through UV breakdown. Storing equipment near heavy electrical equipment presents another major risk. Electrical motors generate ozone, which attacks and cracks synthetic rubber. This environmental degradation weakens the cover before the hose ever sees active duty. Always store unused inventory in cool, dark, and dry locations away from active machinery.
Reactive maintenance guarantees unexpected downtime. Operations must establish strict visual inspection routines. Maintenance crews should look actively for cover gouges, localized bulging, or exposed wire. A localized bulge indicates internal delamination has already occurred. Exposed wire means the reinforcement layer is currently rusting and losing tensile strength. These are all critical indicators of imminent failure. They require immediate replacement to prevent a hazardous site blowout.
Common Failure Points and Prevention | ||
Failure Mode | Primary Cause | Prevention Strategy |
|---|---|---|
Structural Twist Rupture | Torquing during installation | Align lay lines and support weight properly |
Accelerated Internal Wear | Excessive fluid velocity | Proper internal diameter sizing for laminar flow |
Cover Cracking | Ozone and UV exposure | Store in dark, cool areas away from motors |
Localized Bulging | Delamination / Pressure spike | Maintain safety factors; inspect frequently |
A modern mining hose is an engineered asset, not a simple commodity. It requires complex chemical mixing, precise mechanical reinforcement, and controlled thermal vulcanization. Understanding these critical extrusion, reinforcement, and vulcanization processes empowers buyers. You can easily spot quality discrepancies and avoid substandard products. Ignoring these manufacturing realities directly increases site hazards and operational downtime.
Your next-step actions should focus on immediate field assessment. Audit your current failure rates and identify recurring damage patterns. When shortlisting new vendors, immediately request detailed technical data sheets (TDS). Ask them specific, pointed questions about their compounding techniques and vulcanization QA/QC processes. Demand proof of mandrel-built construction for your critical slurry lines. Taking these proactive steps ensures your operation runs smoothly, safely, and continuously.
A: A fixed timeline does not exist. The lifespan depends entirely on application variables like slurry abrasiveness, flow rate, operating pressure, and site maintenance. A well-maintained hose handling mild fluids can last years. Conversely, one pumping highly abrasive, high-velocity rock slurries may require replacement every few months. Proper specification and regular visual inspections maximize operational longevity.
A: Mandrel-built hoses are extruded over a solid, rigid core during manufacturing. This process guarantees perfect internal diameter consistency and uniform wall thickness. Non-mandrel (free-extruded) hoses often suffer from slight internal variations. Superior diameter consistency directly impacts flow dynamics. It prevents the internal turbulence that rapidly accelerates wear during high-velocity slurry transfers.
A: Patching high-pressure or slurry hoses is highly discouraged. A damaged cover or inner tube compromises the structural reinforcement layers. Attempting repairs introduces severe safety risks, including sudden catastrophic blowouts under pressure. Replacement remains the only standard, safe protocol. Do not risk personnel safety by operating structurally compromised pressure equipment.
A: Working pressure dictates the maximum continuous pressure the system should handle during normal operations. Burst pressure represents the absolute threshold where catastrophic structural failure occurs. The ratio between them defines your safety margin. A standard 1:4 ratio means the burst limit is four times higher than the working limit, ensuring operational compliance and safety.
