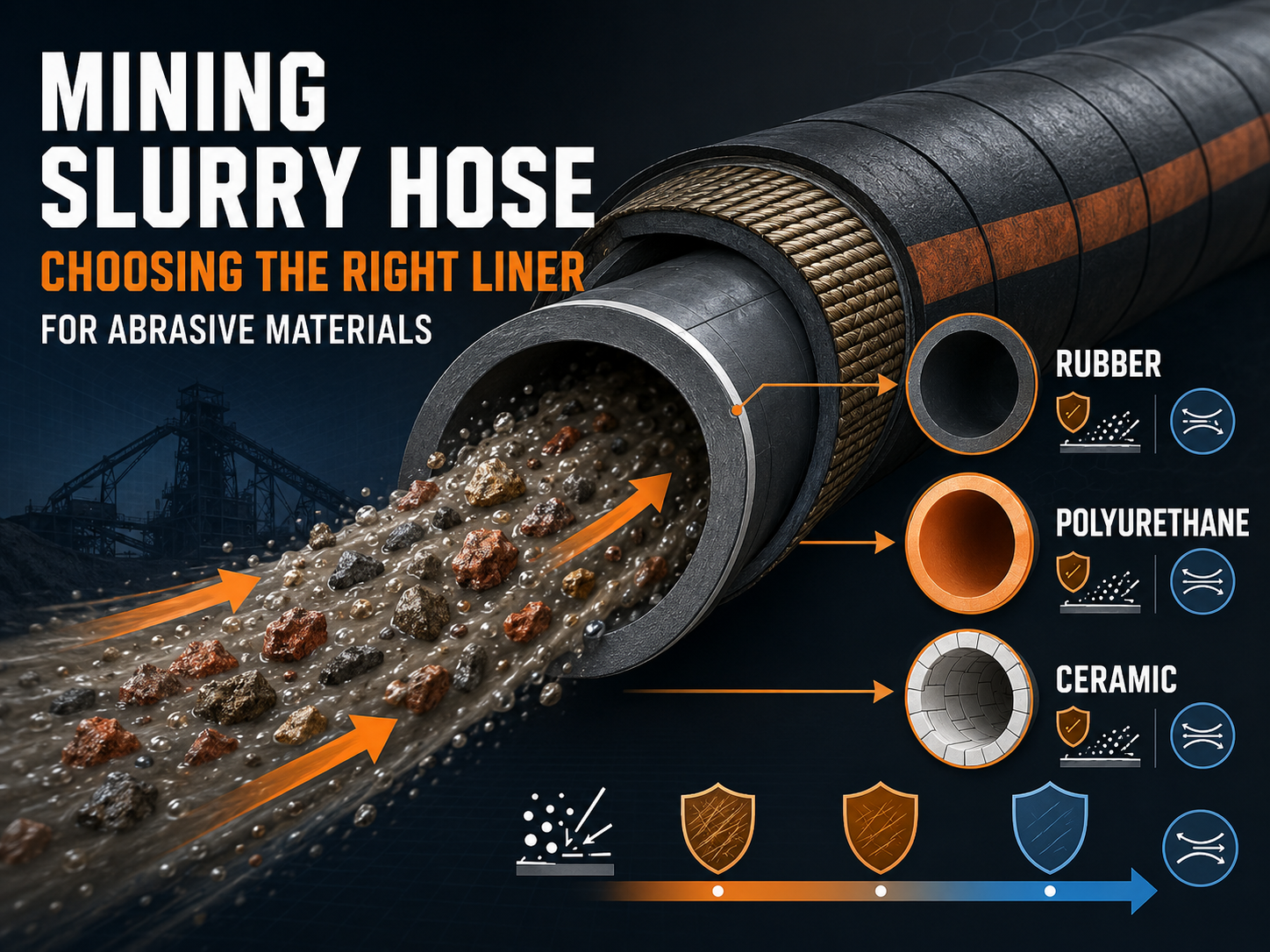

Mining Slurry Hose: How to Choose the Right Liner for Abrasive Materials

A mining slurry hose can have the correct diameter and pressure rating but still wear out quickly if its liner is not suitable for the conveyed material. The liner is the first component exposed to abrasive particles, sliding friction, impact, chemical attack, and changes in flow direction.

Choosing the right liner therefore requires more than selecting the material with the highest advertised abrasion resistance. Particle size, hardness, shape, solids concentration, velocity, temperature, chemical exposure, hose movement, and installation layout all influence liner performance.

This guide explains how to evaluate slurry conditions, compare common liner options, and select a mining slurry hose liner that balances wear resistance, flexibility, chemical compatibility, and service requirements. For background information, see what a mining hose is.

Key Takeaways

• There is no single liner material that is suitable for every abrasive slurry.

• Fine sliding abrasion and coarse impact wear require different material priorities.

• Natural rubber is often suitable for wet abrasive slurry where flexibility and impact resistance are important.

• Synthetic rubber compounds should be selected according to chemical, oil, temperature, and operating requirements.

• Polyurethane may be suitable for certain fine-particle and sliding-abrasion applications, but the specific grade must be verified.

• Ceramic-lined hoses are specialized solutions for severe wear zones and require careful checks for flexibility, impact, and bending.

• Liner thickness, actual internal diameter, pressure rating, vacuum resistance, and coupling design must be considered together.

• The best selection is based on actual slurry data and operating history rather than a general material preference.

What Does a Slurry Hose Liner Do?

The liner is the inner layer of the hose that contacts the slurry. Its main functions are to:

• Resist abrasion from solid particles

• Reduce friction as the slurry moves through the hose

• Protect reinforcement layers from exposure

• Maintain a smooth flow passage

• Tolerate the chemical and temperature conditions of the media

• Support the hose during pressure, movement, and bending

The outer cover protects the hose from external abrasion, weather, impact, and environmental exposure. It cannot compensate for a liner that is incompatible with the conveyed slurry.

A hose liner can wear through several mechanisms at the same time. Particles may slide along the liner, strike it at bends, cut into the surface, or create turbulence around couplings and reducers. The correct material must match the dominant wear mechanism in the application.

Identify the Type of Abrasion

Before comparing liner materials, determine how the slurry is damaging the hose.

Sliding Abrasion

Sliding abrasion occurs when particles move continuously along the liner surface. It is common in long straight sections carrying mineral slurry, sand, tailings, or other solids suspended in water.

A smooth, wear-resistant liner with good resistance to surface loss is usually preferred. Fine particles can still cause significant wear when flow velocity and operating hours are high.

Impact Wear

Impact wear occurs when particles strike the liner rather than simply sliding across it. It is more likely at:

• Elbows and hose bends

• Pump discharge points

• Vertical drops

• Inlet transitions

• Sudden changes in flow direction

• Areas where coarse particles settle and are re-accelerated

A liner that can absorb repeated impact without cracking or separating may perform better than one selected only for sliding abrasion.

Cutting and Gouging

Large, sharp, or angular particles can cut into the liner. This type of wear may be more severe than ordinary fine-particle abrasion.

The selection should consider the particle shape and hardness, not only the percentage of solids. Coarse iron ore, crushed rock, and sharp mineral particles may require a thicker or specially reinforced wear layer.

Combined Abrasion and Corrosion

Some slurries cause both mechanical wear and chemical attack. Acids, alkalis, salts, oils, flotation chemicals, and process additives may change the performance of the liner compound.

In these applications, a material with excellent abrasion resistance may still fail prematurely if it swells, hardens, softens, or loses adhesion because of chemical exposure.

Collect the Slurry Information

A liner should be selected from the actual operating profile. Important information includes:

If possible, record the conditions at the hose location rather than relying only on general plant data. The slurry may change between the pump, pipeline, cyclone, discharge point, and tailings area.

Compare Common Liner Materials

Abrasion-Resistant Natural Rubber

Natural rubber is widely used for wet abrasive slurry because it combines flexibility, resilience, impact absorption, and abrasion resistance.

It can be a strong option for:

• Mineral slurry

• Sand and gravel mixtures

• Tailings

• Coal preparation slurry

• Wet abrasive solids

• Applications requiring frequent movement

Natural rubber is not automatically suitable for every chemical or temperature condition. Oils, solvents, high temperatures, and certain process chemicals may require another compound or a specially formulated rubber.

When the slurry is primarily water-based and abrasive, a high-quality natural-rubber liner may provide a good balance between wear life and flexibility.

Application-Specific Synthetic Rubber

Synthetic rubber compounds such as SBR, NBR, or EPDM may be selected when the application requires properties that standard natural rubber cannot provide.

Depending on the compound, synthetic rubber may be used to improve resistance to:

• Oils and hydrocarbons

• Chemicals

• Heat

• Weathering

• Ozone

• Specific process fluids

The term “synthetic rubber” is broad. Different compounds have different strengths and limitations, so the exact material and compatibility data should be confirmed with the hose manufacturer.

Do not select a synthetic rubber liner simply because it is described as chemical-resistant. The supplier should evaluate the actual chemical type, concentration, temperature, and exposure time.

Polyurethane

Polyurethane may be considered for some fine-particle slurry applications where sliding abrasion and a smooth internal surface are important.

Potential advantages can include:

• Low-friction flow surface

• Good resistance to certain types of sliding wear

• Useful performance with fine abrasive particles

• Availability in different hardness grades

However, polyurethane performance depends heavily on formulation. Temperature, hydrolysis, chemical exposure, particle size, impact conditions, and required flexibility should all be checked.

A polyurethane liner may not be the best choice for every coarse or high-impact slurry application. Obtain grade-specific test data instead of comparing polyurethane and rubber only by general material names.

Ceramic-Reinforced or Ceramic-Lined Hose

Ceramic-lined hose is designed for particularly severe wear conditions. It typically combines a flexible rubber structure with ceramic tiles or ceramic sections positioned along the material flow path.

It may be considered for:

• Highly abrasive minerals

• Coarse and hard particles

• High-wear elbows and bends

• Cyclone discharge lines

• Tailings and mineral-processing sections

• Locations where frequent hose replacement causes significant downtime

Ceramic lining can provide very high wear resistance, but it is a specialized construction. Important checks include:

• Minimum bend radius

• Flexing frequency

• Impact conditions

• Hose weight

• Installation space

• Vacuum or suction requirements

• Tile or lining design

• Connection and support method

A ceramic-lined hose should not be selected only because the slurry is abrasive. If the hose must flex frequently or absorb significant movement, the construction must be specifically designed for that duty.

Match the Liner to the Application

The following guide can help with an initial comparison:

These are starting points, not final specifications. A material that performs well in one plant may produce a different result in another because of changes in particle size, velocity, chemistry, or routing.

Consider Liner Thickness and Actual Internal Diameter

A thicker liner can provide more wear allowance, but it also reduces the hose’s internal diameter. This may affect:

• Flow velocity

• Pressure loss

• Pump energy requirements

• Solids transport

• Settling risk

• Coupling dimensions

The actual internal diameter should be confirmed from the technical data and used in hydraulic calculations. The nominal hose size alone may not reflect the finished bore after the liner and reinforcement have been formed.

A liner that is too thin may wear through quickly. A liner that is unnecessarily thick may increase weight and reduce the available flow area. The correct thickness should be based on the expected wear rate, required service interval, operating pressure, and available space.

For this reason, liner selection should be coordinated with the wider mining hose assembly selection process.

Use Different Liner Solutions in Different Hose Zones

A complete slurry line does not necessarily experience the same wear conditions along its entire length.

For example:

• A straight horizontal section may experience mainly sliding abrasion.

• A bend may experience impact and turbulence.

• A reducer may experience increased local velocity.

• A pump outlet may experience pressure pulsation and particle acceleration.

• A vertical section may experience settling during shutdown.

• A discharge section may experience both abrasion and external movement.

Using the same liner construction everywhere may be convenient, but it is not always the most economical approach. A zone-based design can use a standard abrasion-resistant rubber hose in normal sections and a more durable reinforced or ceramic-lined hose in high-wear locations.

This approach can reduce unnecessary cost and avoid using a heavy or rigid construction where flexibility is more important.

Check the Whole Hose, Not Only the Liner

The liner is important, but it does not determine the complete performance of the hose assembly.

Also confirm:

Pressure Rating

The hose must withstand normal working pressure, pump surges, pulsation, and shutdown conditions. The complete assembly is limited by its lowest-rated component.

Reinforcement

The reinforcement must support the pressure and movement requirements of the application. A highly wear-resistant liner cannot compensate for inadequate pressure reinforcement.

Flexibility and Bend Radius

The hose should maintain the required bend radius without kinking, flattening, or damaging the liner. Ceramic constructions may have different flexibility limits from conventional rubber hoses.

Vacuum Resistance

A discharge hose rating does not automatically make the hose suitable for suction service. Vacuum resistance, collapse protection, and pump inlet conditions must be evaluated separately.

Couplings and Flanges

The coupling must match the actual hose dimensions, liner construction, pressure, media, and attachment method. The connection area should not become an unintended high-wear or high-stress point.

External Cover

Mining sites can expose the hose to rocks, steel structures, mud, sunlight, and dragging. The outer cover must be suitable for the external environment even when the internal liner is correctly selected.

Ask for Application-Based Evidence

When comparing two liner options, request information that relates to the actual duty rather than relying only on general marketing descriptions.

Useful information includes:

• Recommended slurry type

• Particle size and hardness range

• Abrasion or wear test method

• Liner material and thickness

• Maximum continuous temperature

• Chemical compatibility

• Working pressure and vacuum rating

• Minimum bend radius

• Flexing limitations

• Recommended flow velocity

• Coupling compatibility

• Inspection and replacement criteria

• Previous service experience in similar applications

If an existing hose has failed, provide photographs and operating information. The wear pattern can help identify whether the problem was caused by sliding abrasion, impact, chemical attack, excessive velocity, settling, bending, or installation.

Service-life claims should also be compared carefully. A stated service life from one application cannot be treated as a guaranteed interval for another mine or process line.

Common Liner Selection Mistakes

Conclusion

Choosing the right mining slurry hose liner starts with understanding the actual abrasive mechanism. Fine sliding abrasion, coarse impact, sharp particle cutting, chemical exposure, and frequent flexing place different demands on the liner.

Natural rubber can provide a strong balance of wet-abrasion resistance, flexibility, and impact absorption. Synthetic rubber may be preferable when oil, chemicals, temperature, or environmental exposure is important. Polyurethane and ceramic-lined constructions can be considered for specific wear conditions, but their suitability depends on formulation, geometry, movement, and application data.

The most reliable selection evaluates the liner together with the hose bore, reinforcement, pressure rating, vacuum resistance, outer cover, couplings, and installation layout. A properly matched liner can reduce unplanned shutdowns, improve hose service life, and make replacement planning more predictable.

FAQ

What is the best liner for abrasive slurry?

There is no universal best liner. Abrasion-resistant natural rubber is often suitable for many wet mineral slurries, while synthetic rubber, polyurethane, or ceramic-lined constructions may be more appropriate for specific chemical, temperature, particle, or wear conditions.

Is rubber or ceramic better for mining slurry?

Rubber usually provides better flexibility and impact absorption. Ceramic-lined hose may provide higher wear resistance in severe abrasion zones but can have different limits for bending, movement, weight, and installation. The better choice depends on the complete operating profile.

Is polyurethane suitable for slurry hose liners?

Polyurethane may be suitable for certain fine-particle or sliding-abrasion applications. The exact grade must be checked for temperature, chemical exposure, particle impact, hydrolysis, and flexibility requirements.

Does a thicker slurry hose liner always last longer?

Not necessarily. A thicker liner provides more wear allowance, but it reduces the internal diameter and may affect flow velocity, pressure loss, and solids transport. Thickness should be selected from the expected wear rate and hydraulic requirements.

How does particle size affect liner selection?

Fine particles often create continuous sliding abrasion, while coarse or angular particles can create impact and cutting wear. Particle size should therefore be considered together with hardness, shape, concentration, and flow velocity.

Can the same liner be used for suction and discharge service?

Not automatically. Suction service requires the complete hose to resist vacuum and collapse. The liner, reinforcement, hose construction, and pump inlet conditions must all be checked.

How can I determine whether the liner is wearing too quickly?

Track liner thickness, flow or pressure changes, pump load, leakage, bulging, and the location of wear. Comparing inspection results with slurry conditions and operating history can help identify whether the material, velocity, routing, or installation needs to be changed.
