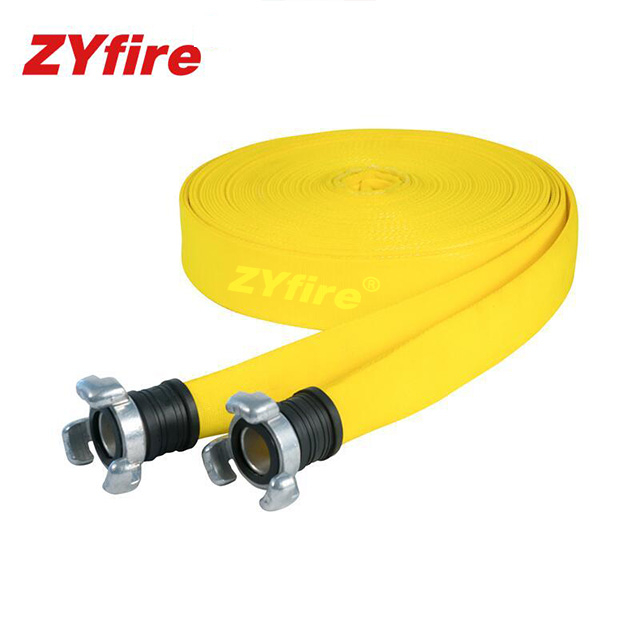

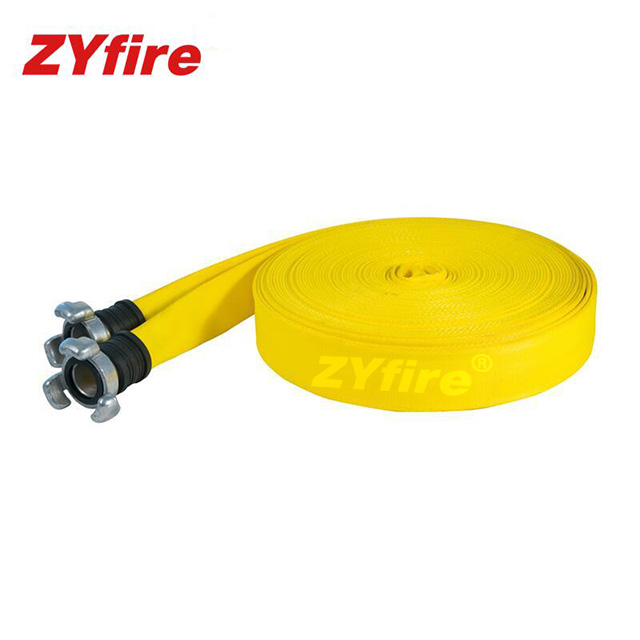

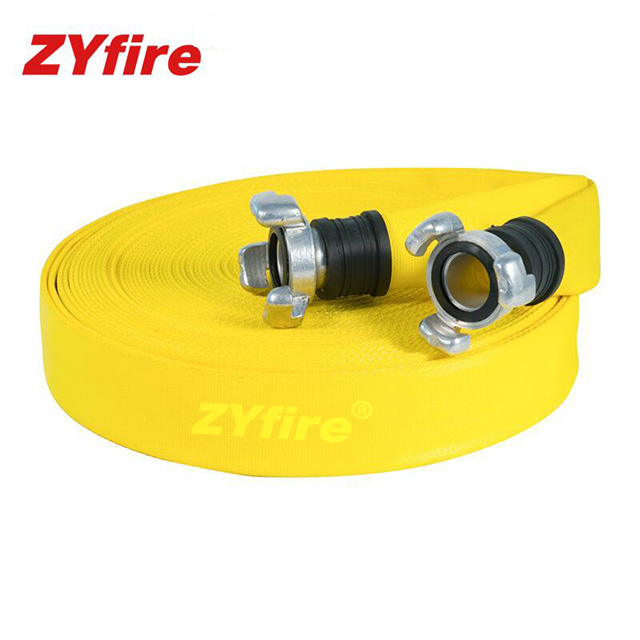

Sintack-D (Rack-D), EPDM Lined Hose---UL, FM, MED, EN14540, DIN14811 approved
Introducing the Sintack-D (Rack-D), an exceptional fire hose designed to meet the highest industry standards. This UL FM MED EN14540 DIN14811 approved fire hose features a robust construction and is equipped with an EPDM lined single jacket, ensuring superior performance and reliability in demanding fire protection applications. Meanwhile, this fire hose has successfully passed rigorous testing and meets the stringent UL FM MED EN14540 DIN14811
Jacket: 100% Virgin Polyester Jacket. Single Jacket. Twill or Plain Weave. The single jacket construction provides durability while maintaining flexibility, allowing for easy handling and deployment.
Lining: EPDM Rubber Tube.The hose is lined with EPDM material, which offers exceptional resistance to heat, chemicals, and weathering.
Application: Industrial Fire Fighting. Fire hose for brigade. Premium Solution.
Standard Length: 15m (50ft), 20m (66ft), 25m (82ft), 30m (100ft).
Color: White, yellow, orange, red, blue, green, brown
ID | ID | Service Pressure | Minimum Burst Pressure |
inch | mm | Psi/bar | Psi/bar |
1 1/4” | 32 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
1 1/2” | 40 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
1 3/4” | 45 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
2” | 50 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
2 1/2” | 65 | 150/10, 200/14, 220/15, 250/17, 300/21 | 450/30, 600/42, 660/45, 750/51, 900/63 |
2 3/4” | 70 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
3” | 75 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
4” | 102 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
6” | 152 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
*All above technical parameters are for reference, no notice if any changes, details please confirm with ZYfire
