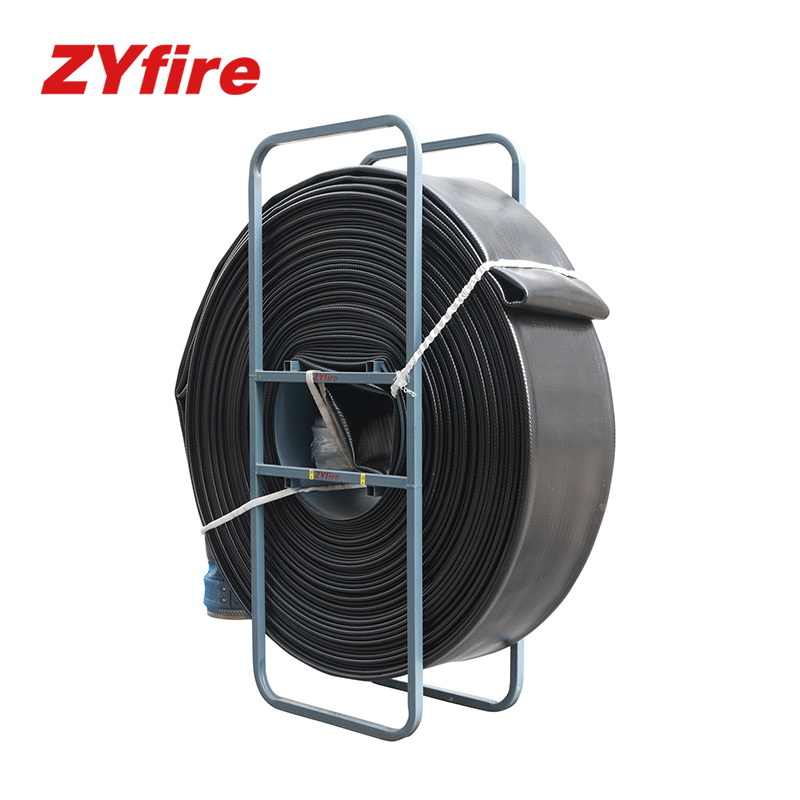

Fracflo Hose Plus is a through-the-weave TPU hose designed for produced water transfer. The hose features a TPU cover and lining manufactured using an extrusion through-the-weave construction, together with a reinforcement jacket made from 100% high-tenacity polyester filament.
Available in sizes from 4 inch to 16 inch, Fracflo Hose Plus provides different service pressure ratings to meet various produced water transfer requirements. Standard available lengths range from 100 m (330 ft) to 400 m (1,320 ft), allowing users to select a hose configuration according to project requirements.
The hose is supplied with an LDHC coupling, while the connection assembly uses a 316 stainless steel nipple, ductile iron clamp, and Viton rubber gasket.
● Through-the-weave TPU construction with TPU cover and lining
● 100% high-tenacity polyester filament reinforcement jacket
● Designed for produced water transfer
● Available in 4", 6", 8", 10", 12", 14", and 16" internal diameters
● Service pressure ratings from 150 psi to 300 psi, depending on hose size
● Minimum burst pressure ratings from 450 psi to 900 psi, depending on hose size
● Operating temperature range from -50°C to +80°C (-58°F to +178°F)
● Available in long lengths of up to 400 m (1,320 ft)
● Available colors: blue, green, black, and red
● LDHC coupling configuration
● Connection assembly with 316 stainless steel nipple, ductile iron clamp, and Viton rubber gasket
Component | Material / Construction |
Cover | TPU |
Lining | TPU |
Manufacturing Method | Extrusion through-the-weave |
Reinforcement Jacket | 100% high-tenacity polyester filament |
Coupling | LDHC |
Nipple | 316 stainless steel |
Clamp | Ductile iron |
Gasket | Viton rubber |
Parameter | Specification |
Product Type | Through-the-weave TPU produced water hose |
Temperature Range | -50°C to +80°C (-58°F to +178°F) |
Available Lengths | 100 m (330 ft), 200 m (660 ft), 300 m (990 ft), 400 m (1,320 ft) |
Available Sizes | 4", 6", 8", 10", 12", 14", 16" |
Coupling | LDHC |
Colors | Blue, Green, Black, Red |
I.D. | Approx. Wall Thickness | Service Pressure | Minimum Burst Pressure |
4" | 0.138 in | ≥250 psi | ≥750 psi |
6" | 0.150 in | ≥250 psi | ≥750 psi |
8" | 0.177 in | ≥300 psi | ≥900 psi |
10" | 0.197 in | ≥300 psi | ≥900 psi |
12" | 0.228 in | ≥200 psi | ≥600 psi |
14" | 0.205 in | ≥150 psi | ≥450 psi |
16" | 0.205 in | ≥150 psi | ≥450 psi |
Fracflo Hose Plus is configured with an LDHC coupling system. The connection components listed for this product include:
● Nipple: 316 stainless steel
● Clamp: Ductile iron
● Gasket: Viton rubber
When selecting a hose assembly, the hose diameter, service pressure and coupling configuration should be confirmed according to the actual project requirements.
The following chemical test data applies to the nipple used with the Fracflo Hose Plus connection system.
Test Item | Concentration | Approx. Temperature | Endurance |
Nitric Acid | 10% | 24°C | ≥1 year |
Phosphoric Acid | <5% | <100°C | ≥1 year |
Calcium Chloride | 10% | 24°C | ≥1 year |
Ammonium Hydroxide | 30% | 24°C | ≥1 year |
Sodium Carbonate | 10% | 100°C | ≥1 year |
Lead Sulfate | 30% | 24°C | ≥1 year |
Ammonium Phosphate | Any | 24°C | ≥1 year |
Ammonium Sulfate | Any | 24°C | ≥1 year |
Fracflo Hose Plus is designed for:
● Produced water transfer
● Fluid transfer in oil and gas applications involving produced water
For projects involving a specific fluid composition, temperature, operating pressure or chemical exposure, the required hose and coupling configuration should be confirmed before selection.
When requesting a quotation or selecting a Fracflo Hose Plus configuration, please confirm the following information:
1. Required hose internal diameter
2. Required hose length
3. Required service pressure
4. Operating temperature
5. Fluid to be transferred
6. Required hose color
7. Coupling requirements
Providing the application conditions helps ensure that the appropriate hose specification is selected.
Fracflo Hose Plus is a through-the-weave TPU hose designed for produced water transfer. It uses a TPU cover and lining with a reinforcement jacket made from 100% high-tenacity polyester filament.
The hose is available in 4", 6", 8", 10", 12", 14", and 16" internal diameters.
The service pressure depends on hose diameter. The 8-inch and 10-inch versions are rated at ≥300 psi, while other sizes have service pressure ratings ranging from ≥150 psi to ≥250 psi.
The listed operating temperature range is -50°C to +80°C (-58°F to +178°F).
Standard listed lengths include 100 m, 200 m, 300 m, and 400 m, equivalent to approximately 330 ft, 660 ft, 990 ft, and 1,320 ft.
