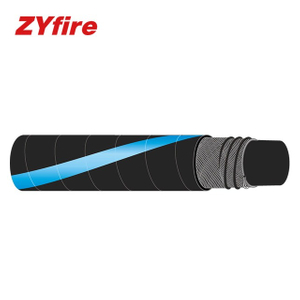

Flexible Chemical Composite Hose

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Inner Wire: Stainless Steel 316L


External Wire: Stainless Steel 316L


Inner lining: PTFE


Application: For delivery aspiration of a large variety of highly corrosive and compatible with PTFE and stainless steel such as phosphoric acid, Naphtha or Nitric acid in low concentration among others.


Cover: PVC coated polyester cloth


ID

Bend Radius

Working Pressure

Weight

inch

mm

min.(bar)

max.(bar)

Kg/m

1

200

10

16

1.76

1-1/2”

230

10

16

1.90

2

290

10

16

2.19

2-1/2”

310

10

16

3.13

3

340

10

16

3.80

4

430

10

16

5.29

6

700

10

16

12.21

8

840

10

16

17.14

10

940

10

16

24.92

*All above technical parameters are for reference, no notice if any changes, details please confirm with ZYfire
